This document explains the three key design aspects behind Elements through examples. The Elements C++ GUI library is:

Modular: Elements is very lightweight and extremely modular. You compose very fine-grained, flyweight “elements” to form deep element hierarchies using a declarative interface with heavy emphasis on reuse.

Declarative: Elements exposes a declarative API using modern C++. Declarative C++ code tells you what rather than how (imperative, i.e. control flow). There are no code generators. The GUI is declared entirely in C++ code. After a while, code reuse, using a palette of fine-grained elements, becomes very familiar and intuitive, much like using HTML.

Interoperable: Elements is usable in any application and plays well with other GUI libraries and frameworks. The library is loosely coupled with the application and windowing system and can co-exist with components within a host. It should be easy to integrate Elements with any existing application.

Minimal Example

Specific examples should make it clear. Let’s start with a basic window with a dark grey background. Actually, this is the same as the ‘empty’ example provided in the ‘examples’ directory: https://github.com/cycfi/elements/tree/master/examples/empty

The examples presented here can be found in this link: https://github.com/cycfi/elements/tree/master/examples/doc_aspects

#include <elements.hpp>

using namespace cycfi::elements;

// Main window background color
auto constexpr bkd_color = rgba(35, 35, 37, 255);
auto background = box(bkd_color);

int main(int argc, const char* argv[])
{
   app _app(argc, argv);
   window _win(_app.name());
   _win.on_close = [&_app]() { _app.stop(); };

   view view_(_win);

   view_.content(
      background
   );

   _app.run();
   return 0;
}

App and Window

Here, we create an app and a window, and set the window’s on_close to stop (quit) the application. _win.on_close is called when the window is closed by the user, thereby quitting the application.

Like any other GUI library or framework, the app manages the main event loop, while the window manages application windows. However, take note that the app and the window classes are optional. There are certain situations, like e.g. building plugins or incorporating Elements in another framework such as QT, where you do not want Elements to manage the event loop or windows. The important class of interest here is the view. In these cases, you want to embed the view directly. You can directly construct a view given a platform window (or widget), as its main content view or child window (or widget).

The view does not know anything about drawing or user interaction. Instead, it relies on its client supplied content to do these. Without any content, it is an empty shell. And so this is where it starts to get interesting. The content of the view typically contains multiple layers, much like typical graphics applications. In this example, we only have one layer: the background.

Background

auto background = box(bkd_color);

It is a simple, infinitely resizable box with the specified color: rgba(35, 35, 37, 255). It will resize automatically when the window is resized. We set it as the view’s content:

view_.content(
   background
);

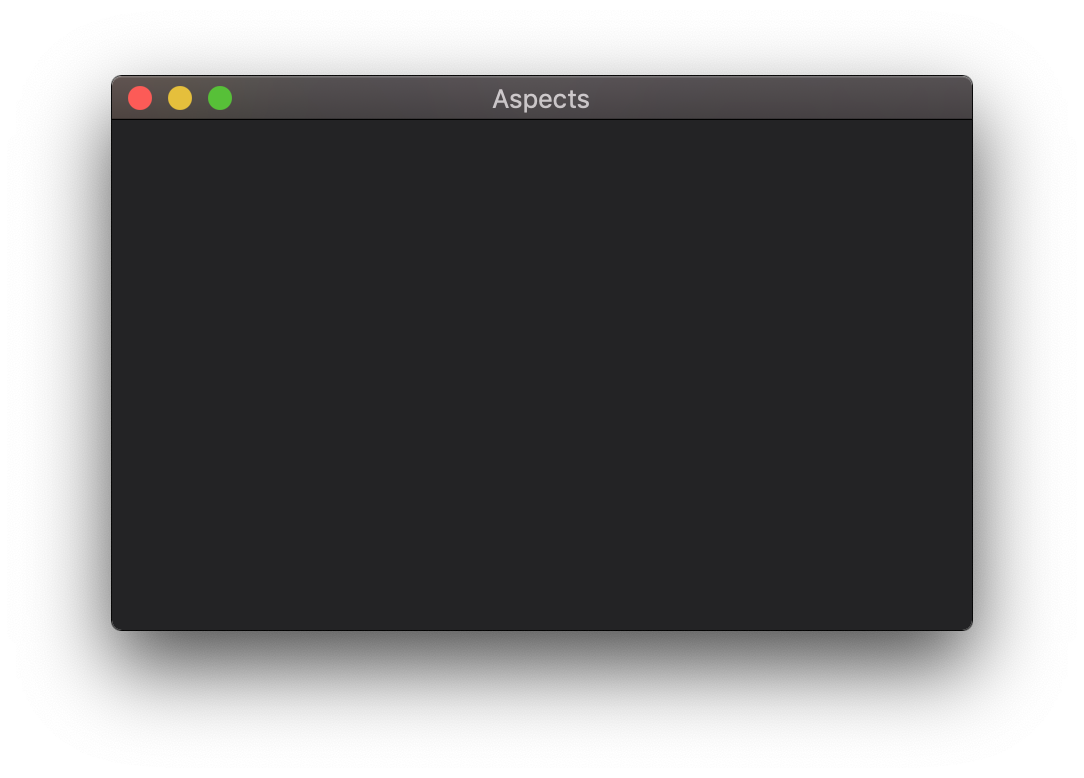

Running this example, you get:

aspects_a

Aligns and Sizes

Now let’s add a blue round rectangle. We’ve seen how to create a box: the background using box, passing in a color. A rounded box is created using rbox, passing in the color and the corner radius:

auto blue_rbox = rbox(colors::medium_blue, 10);

The color, this time, is specified by name from the colors namespace. The namespace includes all predefined colors from the standard HTML Color Names.

We can actually use blue_rbox already, as-is, by placing it in another layer in the view:

view_.content(
   blue_rbox,
   background
);

But like the box, the rbox is infinitely resizable and will hog the entire window. What we want is to give it a specific size and center it in the window. Elements are very lightweight. Most elements do not even have a size, nor know their position in the view (elements without position information are inherently relocatable —they can be placed anywhere; the position is supplied at rendering time).

So we give it a 100x50 size by wrapping it in the fixed_size element:

auto blue_rbox =
   fixed_size(
      { 100, 50 },
      rbox(colors::medium_blue, 10)
   );

And then we align it centered (in the x axis) and middle (in the Y axis) using the align_center_middle element:

auto blue_rbox =
   align_center_middle(
      fixed_size(
         { 100, 50 },
         rbox(colors::medium_blue, 10)
      )
   );

Without the alignment element, the main window would have been constrained to a fixed 100x50 size. There’s a multitude of alignment elements available.

So now, we are seeing how fine-grained elements are composed. The rbox is placed inside the fixed_size element which is then placed inside a align_center_middle element.

Let’s run this example:

aspects_b

Labels, Margins and Layers

Our goal this time is to place some text inside the blue box. The element we will use is the label. Most elements do not have a size, but as an exception, labels (simple text elements) do. So, instead of fixing the size of the box using fixed_size, we place the label alongside the box in a layer element, but add some margin around the label. Here’s how you do it:

auto blue_rbox =
   align_center_middle(
      layer(
         margin(
            { 25, 20, 25, 18 },
            label("“Dogs are my favorite people”")
         ),
         rbox(colors::medium_blue, 10)
      )
   );

If it’s not obvious yet, let’s take it apart into its constituent pieces:

Step 1: We make a label:

label("“Dogs are my favorite people”")

Step 2: We add margin around it:

margin(
   { 25, 20, 25, 18 },
   label("“Dogs are my favorite people”")
)

Note that like the align elements, there’s a multitude of margins such as left_margin, right_margin, etc.

Step 3: We make a blue rounded box:

rbox(colors::medium_blue, 10)

Step 4: We place the label and the blue rounded box as siblings in a layer element:

layer(
   margin(
      { 25, 20, 25, 18 },
      label("“Dogs are my favorite people”")
   ),
   rbox(colors::medium_blue, 10)
)

Step 4: Then finally, we place it in the align_center_middle element.

Tip: If the element hierarchy gets a bit too deep, use the c++ auto to name sub-parts of the element composition to make it easier to understand.

The layer element is a composite element that holds zero or more ‘child’ elements. Some of you might have noticed that we already mentioned the layer element before when we were discussing the view’s content in the App and Window section: “The content of the view typically contains multiple layers, much like typical graphics applications”. Well, actually, this is the same layer thing here. The view’s main content is a layer element.

So now we have:

aspects_c

Let’s Make a Button

To demonstrate the fine-grained and modular nature of Elements, it is perhaps illustrative to say that even the button element is not atomic and is actually composed of smaller parts. In this section, we will see how one creates a button from the basic parts that we have dealt with in the previous sections.

Take note that this example is only for illustrative purposes. The library provides easier ways to make buttons.

A button is composed of two elements that represent its 1) normal and 2) pushed states. The basic concept here is that things like buttons do not know how to render themselves, but instead delegate that task to its subjects. The button takes care of the basic logic behind the the control, including user interaction and interface with the application via on_click callbacks, but delegates rendering to two external elements. We’ll see shortly how that works.

So we need two elements. Let’s reuse the blue_rbox we wrote before. We need two, so this time, we will make a function that takes in a color and returns a button. Hence, we differentiate the two button states (normal and pushed) by the color.

auto btn_rbox(color c)
{
   return
      layer(
         margin(
            { 25, 20, 25, 18 },
            label("“Dogs are my favorite people”")
         ),
         rbox(c, 10)
      );
}

Same as before, but with color options. Now, we have another function that creates the button for us:

auto make_button()
{
   return layered_button(
      btn_rbox(colors::medium_blue),            // Normal state
      btn_rbox(colors::medium_blue.level(0.8))  // Pushed state
   );
}

We have the normal state in medium_blue, and the pushed state, still medium_blue but with the level down by 0.8 (darker).

And… that’s it! Now we have a function that makes our button. We can now place this button in our view. Of course, like before, we keep in mind that we want to center the button:

   view_.content(
      align_center_middle(make_button()),
      background
   );

And here it is in action:

Oh, hey, Elements has a gallery —a collection of reusable element compositions, just like what we did above, but more refined. That gallery is constantly growing. The possibilities are endless. Composing elements is fun!

Sliders too!

Guess what, we can make funny sliders too, using the same components we made in the previous sections!

Here’s the code:

auto track = hsize(10, box(colors::black));
auto thumb =
   layer(
      margin(
         { 25, 20, 25, 18 },
         label("“Dogs are my favorite people”")
      ),
      rbox(colors::medium_blue, 10)
   );

auto funny_slider = slider(thumb, track);

Notice the pattern? It’s the same consistent way of composing and assembling parts. Start with smaller parts. Use them to build ever more complex parts. The slider has two parts: the track and the thumb. Here, we made a simple track using the same old box. We made it black. Then, we reused the same “Dogs are my favorite people” button for the thumb. The result looks silly, I should say , but hey, we are trying to make a point!

Again, take note that this example is only for illustrative purposes. The library provides easier, (but less funny ) ways to make sliders.

Now, like before, we add our funny slider to our view:

   view_.content(
      align_center(funny_slider),
      background
   );

But note that, in this case, we want to center the slider only horizontally, so we use align_center instead of align_center_middle.

Ok, there you go! Now go and be creative and make your own controls!
